Butterfly Valves

Feature:

  • Design and manufacture:API 609
  • Flanged end:ASME B16.5,ASME B16.47
  • Face to face dimension:API 609,MSS SP-68
  • Test and inspection:API 598
  • Operation:Gear,Pneumatic,Electric

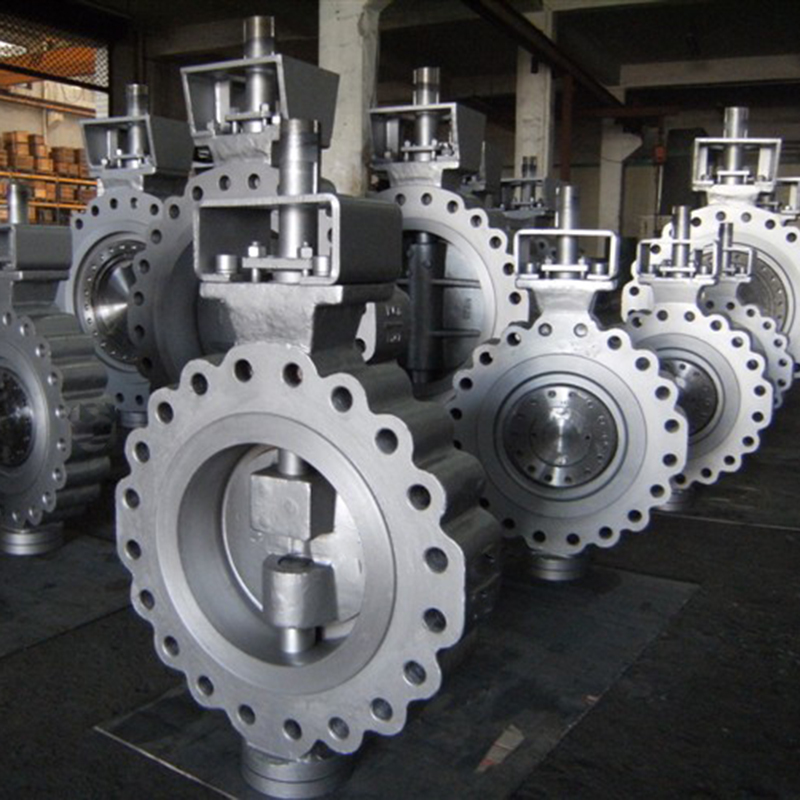

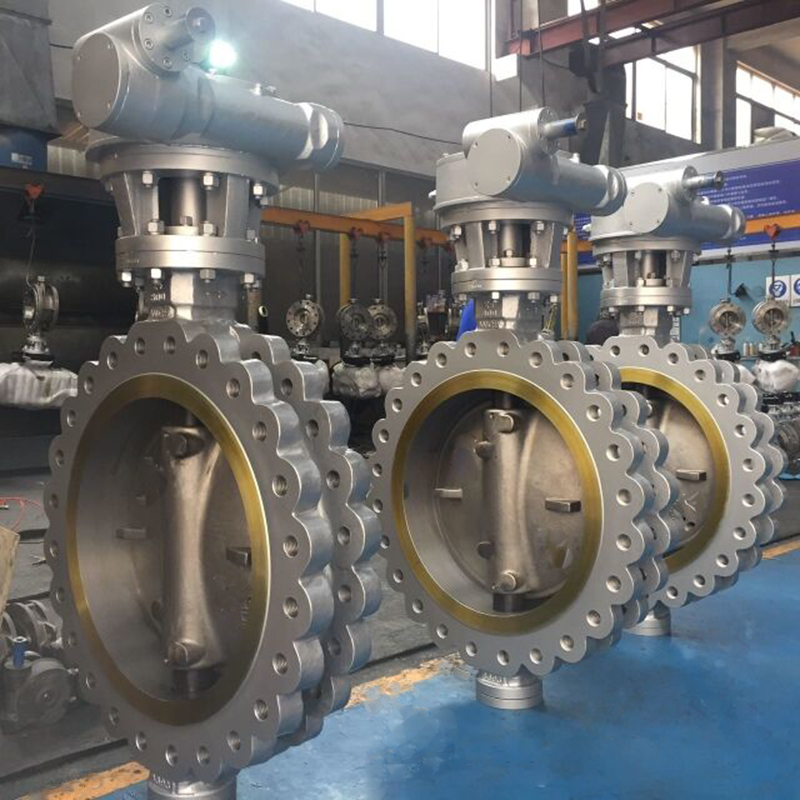

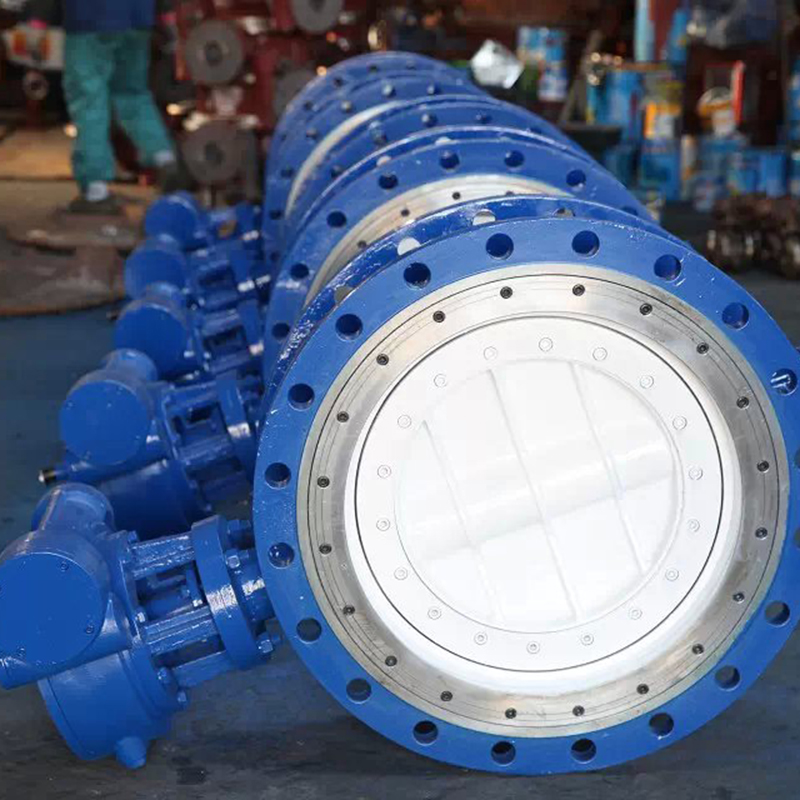

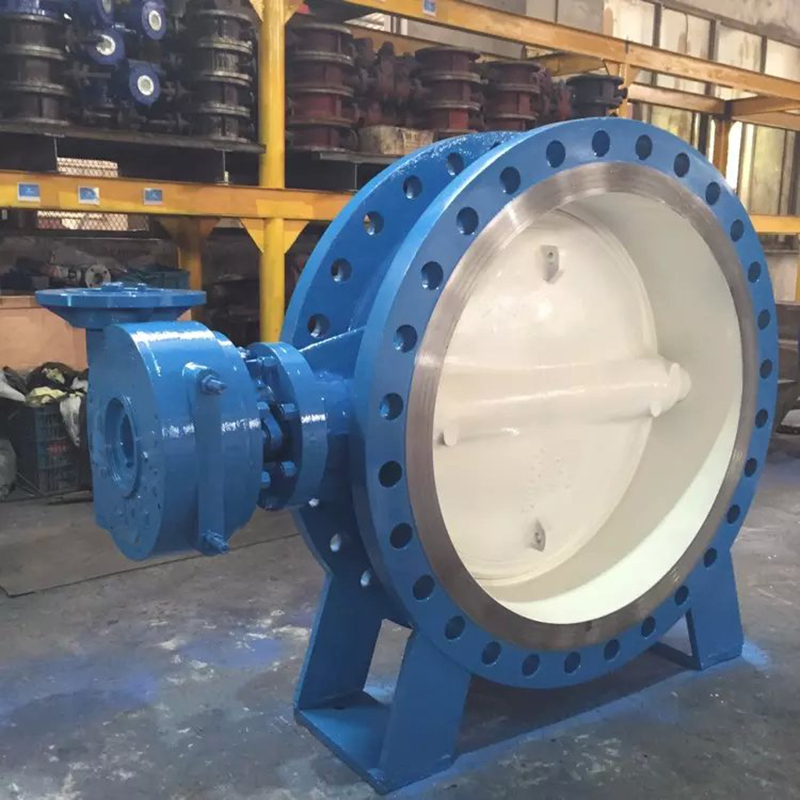

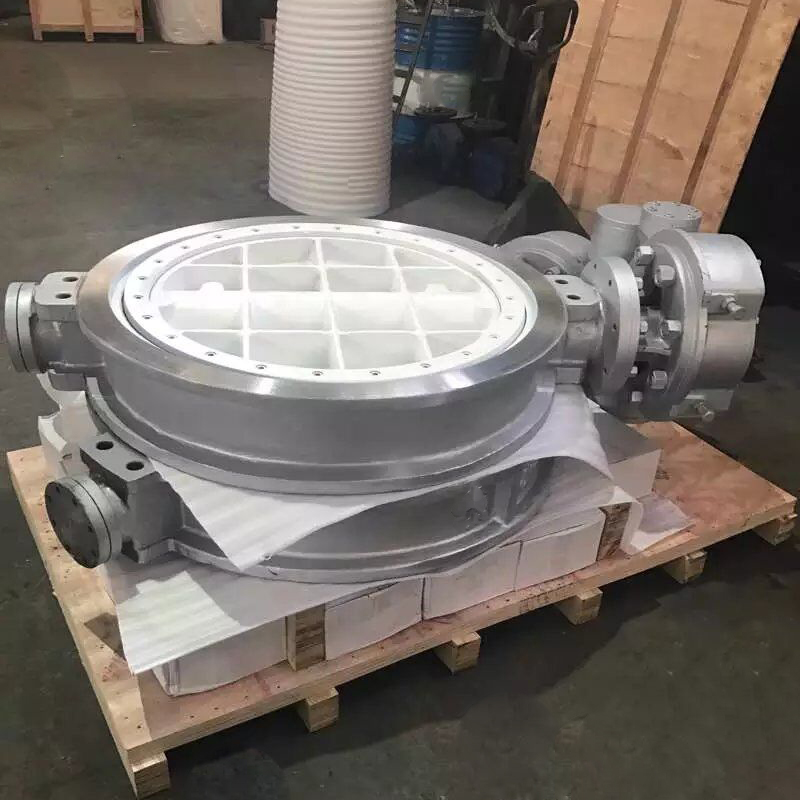

Butterfly valves

Double eccentric/Triple eccentric,Wafer/Lug flange/Flange type

Size:2"-60"  Pressure: Class 150LB

Size:2"-48"  Pressure: Class 300LB

Size:2"-24"  Pressure: Class 600LB

Materials:WCB,LCB,LCC,WC5,WC6,WC9,CA12,CF8,CF8M,CF3,CF3M

REQUEST A SAMPLE
  • PRODUCT FEATURES & PRECAUTIONS
  • CUSTOMIZED INFORMATION
  • Double eccentric/Triple eccentric,Wafer/Lug flange/Flange type
    Parts list
    Parts  name Carbon steel  Stainless steel
    Body ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
    Pin ASTM A182 F6a SS304 SS316
    Stem ASTM A182 F6a ASTM A182 F304 ASTM A182 F316
    Disc ASTM A216 WCB ASTM A351 CF8 ASTM A351 CF8M
    Seal ring SS304+Graphite SS304+Graphite SS304+Graphite
    Retainer flange ASTM A105 ASTM A182 F304 ASTM A182 F316
    Bolt ASTM A193 B7 ASTM A193 B8 ASTM A193 B8M
    Cover ASTM A105 ASTM A182 F304 ASTM A182 F316
    Gasket Graphite/PTFE Graphite/PTFE Graphite/PTFE
    Bushing PTFE+Bronze PTFE+Bronze PTFE+Bronze
    Packing seat SS304 SS304 SS316
    Packing Graphite/PTFE Graphite/PTFE Graphite/PTFE
    Yoke Carbon steel  Carbon steel  Carbon steel
    Pressure: Class 150LB
    Size:2"-60"
    Materials:WCB,LCB,LCC,WC5,WC6,WC9,CA12,CF8,CF8M,CF3,CF3M
    Operation:Gear
    Pressure: Class 300LB
    Size:2"-48"
    Materials:WCB,LCB,LCC,WC5,WC6,WC9,CA12,CF8,CF8M,CF3,CF3M
    Operation:Gear
    Pressure: Class 600LB
    Size:2"-24"
    Materials:WCB,LCB,LCC,WC5,WC6,WC9,CA12,CF8,CF8M,CF3,CF3M
    Operation:Gear

Zhejiang Shunlin Valve Co., Ltd.

Zhejiang Shunlin VALVE as one of Butterfly Valves Manufacturers and Lug Type Butterfly Valves Suppliers in China located in Wenzhou city, Zhejiang province, China. It has employed 120 people, with 10 technicians. The company carries out scientific management, standard technologies and products so as to ensure the quality of each product.

Shunlin VALVE has over 20 years’ experience in manufacturing ball valves, gate valves, globe valves, check valves, butterfly valves, forged valves with materials of carbon steel, stainless steel, Low temp steel, Alloy steel, Ultra-low stainless steel, monel etc. Shunlin VALVES are designed, manufactured and tested as per API and international standard organizations. The wholesale Lug Type Butterfly Valves cover API, ANSI, BS, DIN, JIS, GB etc. Dimensions from “1/2” to “48” pressure from 150 LB to 2500 LB and also we can manufacture according to customers’ special requirements. Shunlin VALVES are applications in the petroleum refinery, chemical, power generation, aluminum, mining, paper and pulp of various industries.

Shunlin VALVE focus on all your oil and gas project needs.
